PFC – Parallel Flange Channel.Set the SOLIDWORKS file path to look in the location where you’re creating your profiles. Home > Support > Downloads US & CANADA 800-693-9000 Click OK to close the Weld Symbol tool and click the green checkmark to close the Weld Bead tool.Hai Sobat Engineer, Buat kalian yang sudah sering menggunakan fitur weldment untuk membuat kerangka / frame / konstruksi sederhana pasti sudah tidak asing da. Prerequisites: SOLIDWORKS Essentials.Certified SOLIDWORKS Professional Advanced Weldments (CSWPA-WD) Employers can be confident that you understand the SOLIDWORKS tools that will aid in the design of Weldment components. Key: RHS – Rectangular Hollow Section. In Save as type, select Lib Feat Part (*. Weldment profiles folder is the .

SOLIDWORKS - Adding Weldment Profile (3 Different Methods) - YouTube

Download new versions, service packs, and add-ins for SOLIDWORKS, Simulation, PDM, and Free CAD Tools (eDrawings, Composer Player, SOLIDWORKS Explorer).Solidworks Trick_n_Tips How to add additional sizes in Weldment sections/profilesAdd custom cross section sizes in Solidworks weldment profilesCustom Weldment Profiles are very easy to set up, they save time during the design and reduce the information that is required on manufacturing drawings.Theo mặc định, SOLIDWORKS cung cấp một bộ hồ sơ cơ bản với một danh sách ngắn các hồ sơ có sẵn và kích cỡ.You can use the Weld Symbol tool to add weld symbols to assemblies, drawings, vertices, and edges or faces of parts. AutoCAD, SOLIDWORKS, Rendering, March 22nd, 2024 Quick release bolt 20mm (. If you cannot save the profile to the installation directory, you can save it locally by creating a subfolder structure. To include a BOM, select Piping BOM template or Tubing BOM template, and click to select a BOM template. Weldment Cut List Tables.Weldments Profil Kütüphanesi Solidworks kurulumu ile beraber gelmemektedir. The default location for weldment profiles is install_dir\lang\language\weldment profiles. Using linear or curved sketch entities, you can create multiple 2D sketches with planes, create a 3D sketch, or combine 2D and 3D sketches. Select other options and click .Structure System.Quick Tip presented by Dane Potter o.Toolbox now includes the Australian standard.SolidWorks Bibliothek – Profile (1) Hier sehen Sie die Modelle, die mir zur Verfügung gestellt wurden. Save the zip files on your desktop. Specify the orientation and pierce point of the profile relative to the sketch segment. The subfolder structure within the weldment profiles folder determines the selections that appear in the Structural Member PropertyManager. To do this, go to System Options. RSA – Rolled Steel Angle.Hosted by Kurt Kurtin on 11/12/20In this CATIPult webcast, you will first see a brief introduction to SOLIDWORKS weldments and their automatic treatment as b. Change the “Show folders for” drop-down menu to Weldment Profiles. Items that appear in the cut list must appear in the Cut list folder at the part level. With the powerful and user-friendly design functionalities for aluminium profiles and connections of different famous manufacturers there are no limits to your creativity. Click on Design library icon in task pane > expand Solidworks Content > weldments. See how to create the profile as a library feature . Go to Options, then File Locations and in Show folders for find Weldment profiles.Click Define Weld Symbol to create and edit the weld symbol to be used for the selected weld. JK By Jesse Katz 12/16/12.com/solidworks/Easily create new shapes or sizes of weldment profiles in SOLIDWORKS and add them to your library quickly.

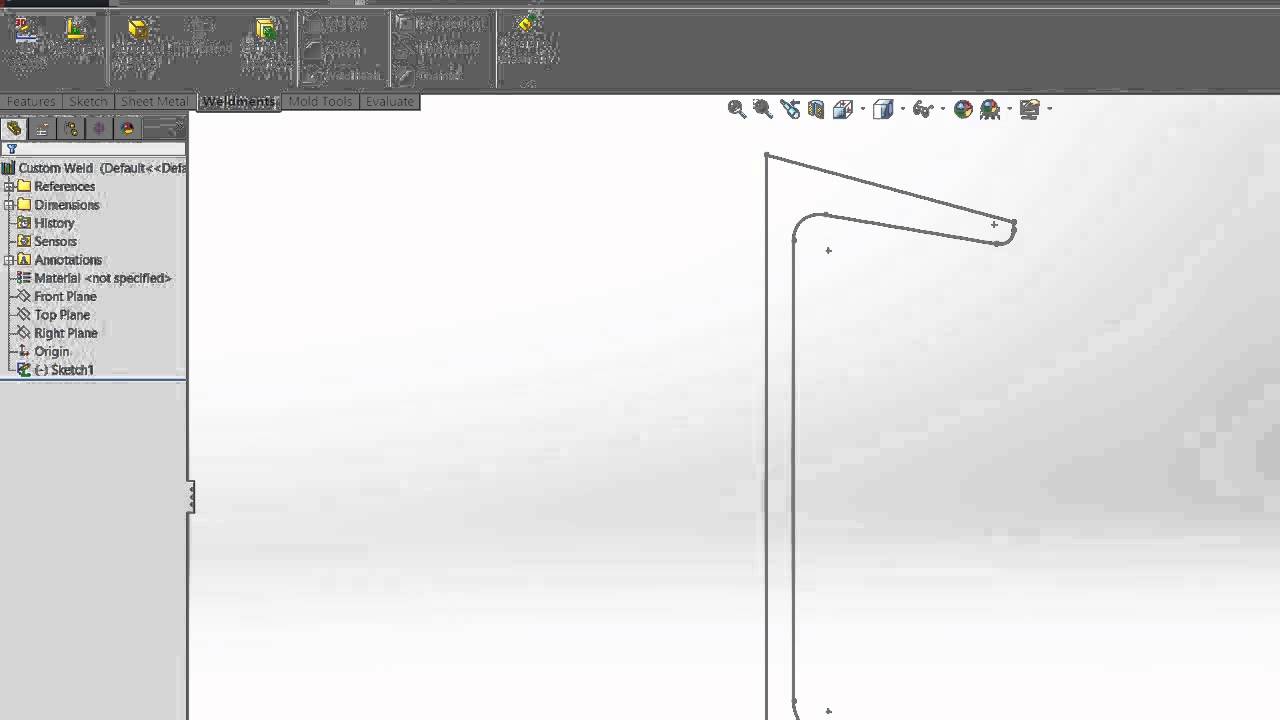

SolidWorks 2014 - Creating Custom Weldment Profile Using Toolbox - YouTube

Click File > Publish.If you insert AutoBalloons into a drawing view of a weldment and the drawing does not contain a cut list, you are prompted whether you want to create a cut list.com/channel/UCjd_zIvYtQymk0dPx3vTJcA/joinYou Can Support our Channel for more tutorials, We Provide SolidWorks, Autodesk inventor and Fus.

SolidWorks Tutorial: Adding Weldment Profile Standards by SolidWize ...

Weld Symbols

Example: Using Length and Angle Custom Properties. Notice that a new folder appears .From the Toolbox configuration tool, click . Note: You must use at least SOLIDWORKS 2010 for this exam.Profiles and Cut Lists. Take the Exam Sample CSWPA-WD Exam.Autor: Visiativ UK

Downloads

If you delete a cut list, all balloons related to the cut list change their Item Number to 1.

File Location for Custom Profiles

Using these new lumber profiles, I will know exactly how much lumber I will need to buy from the store.For information on attending a training class, contact your Certified SOLIDWORKS Reseller. Additionally, each size of the structural members from the Australian standard is published as a weldment profile, which you can download from SolidWorks Content in the Design Library task pane. English Deutsch Français Italiano Español Português do Brasil Nederlands 漢語 .Zuschnittslistentabellen für Schweißkonstruktionen.When the first weldment feature is inserted in a part, the Solid Bodies folder is renamed to Cut list to indicate the items to include in the cut list.we will learn about Extruded boss base, 3D sketch, structural member in weldments and Appearance setting features in Solidworks.Discover all CAD files of the Linear Guideway category from Supplier-Certified Catalogs SOLIDWORKS, Inventor, Creo, CATIA, Solid Edge, autoCAD, Revit and many more CAD software but also as STEP, STL, IGES, STL, DWG, DXF and more neutral CAD formats.zip 135 KB (Downloads bisher: 9952) ITEM Profil 80×16 ECO, tabellengesteuerte Längen.3D modelling in Solidworks we. Click to select a sheet format template. ITEM Profil 40x40x45° schwer, tabellengesteuerte Längen.Weldments – File Location for Custom Profiles. Description: Weldments teaches you how to create welded structures with standard structural members. Create complex designs .Hit add, and select your folder from the browse window. Trong Tools → Options → Vị trí File → Profile hàn, SOLIDWORKS chỉ tới: install_dir \ lang \ language \ weldment profiles.Adding Structural Members.

SOLIDWORKS, rollers

Download the Table of Contents PDF: Weldments. See Weldments – File Location for Custom Profiles. You can pattern and mirror structure system members using the Linear Pattern, Circular Pattern, or Mirror tools.

Linear Guideway: 3D models

zip 193 KB (Downloads bisher: 8786)

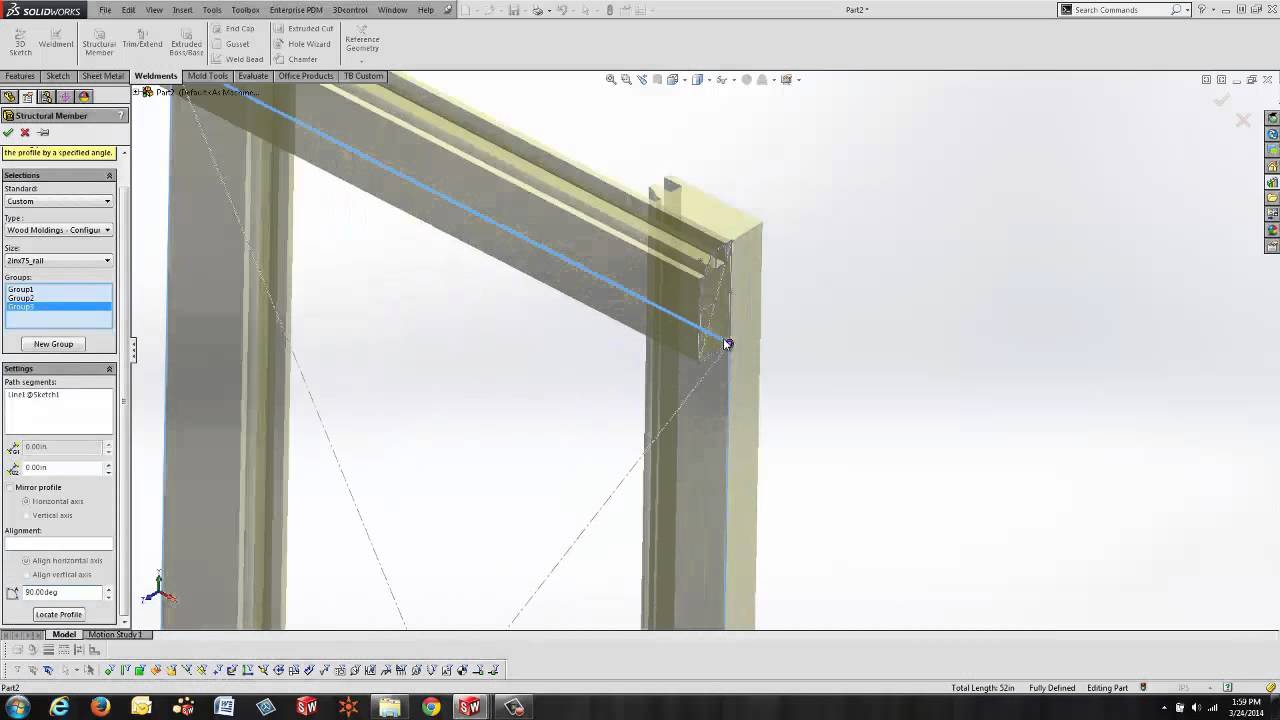

SOLIDWORKS 2014 – Weldment Profiles - YouTube

by Noel Swedzinski.Aluminium profile design with SOLIDWORKS. Note that when you click Weld Symbol, the default weld symbol is recognized for the type of weld to be added. April 1st, 2024 Welding Table (adjustable. Select the Add button. Sie können auch Elemente wie Knotenbleche und Endkappen hinzufügen, indem Sie Werkzeuge aus der Schweißkonstruktions . Profiles are identified by Standard, Type, and Size. Contains one or more standard folders. You can: Create your own profiles and add them to the existing library of weldment profiles. This typically meant .You’ll have to put the files in your Solidworks default directory for weldment profiles, or create your own and redirect Solidworks your custom directory within ‚System Options/ File Locaitons/ Weldment Profiles‘.Video ansehen5:31In SolidWorks you can create your own weldment profiles to use when creating weldment structural members. Click File > Save As. In the dialog box: In Save in, browse to install_dir\data\weldment profiles and select or create appropriate and subfolders. In 2014, SolidWorks enabled the ability to configure Weldment Profiles (an enhancement request that originated from yours truly).

SolidWorks Lumber Weldment Profile Library

You can view the Pipe Length in notes and custom .Sie können: Erstellen Sie Ihre eigenen Profile und fügen Sie sie zur vorhandenen Bibliothek der Schweißkonstruktionsprofile hinzu. January 6th, 2014. The structure system uses primary and secondary structural members in a workflow that makes it easier to create complex structure systems with flexible corner management and trimming. The software supports ANSI, ISO, GOST, and JIS weld symbol libraries.SOLIDWORKS 2012, SOLIDWORKS 2017, SOLIDWORKS 2014, SOLIDWORKS 2013, March 27th, 2019 Medical instrument K-wire.Step 1: Find where your Weldment templates are saved.

How to create custom weldment profiles in SOLIDWORKS?

Make selections in the PropertyManager to define the profile for the . From the SolidWorks menu, click Toolbox > Configure. Sie können 2D- und 3D-Skizzen verwenden, um das Grundgerüst einer Schweißkonstruktionsstruktur zu definieren, und dann Strukturbauteile mit Gruppen von Skizzensegmenten erstellen. The AluFrame Assistant is a parametric 3D CAD software solution which is integrated into SOLIDWORKS by 100%. Schweißkonstruktionsprofile befinden sich im Verzeichnis: Installationsverzeichnis\lang\lang\weldment profiles. These symbols are available in the ANSI weld symbol library. Definieren Sie die Ausrichtung und den Ansteckpunkt des Profils relativ zum Skizzensegment. Sie können eine Tabelle für Zuschnittslisten für Schweißkonstruktionen verwenden, um für geschnittene, geschweißte Konstruktionsformen eine Tabelle hinzuzufügen, die einer Stückliste ähnelt. (Sadece örnek birkaç profil haricinde)Bu videoda standart profilleri, weldment mo.

SOLIDWORKS – Editing Weldment Profile Custom Properties - YouTube

Mehr Modelle finden Sie z.Step 2: You need to search for your weldment profiles folder.Schweißkonstruktionen.downloading weldment profiles. Create a sketch. Click File > Publish.From a saved routing assembly, click Pipe Drawing . This allowed me to create an entire lumber library in just a few minutes while utilizing a design table.In the FeatureManager design tree, select Sketch1. PTC Creo Elements, SOLIDWORKS 2017, SOLIDWORKS 2014, Solid Edge, STEP / IGES, STL, Rendering, Other, January 29th, 2019 FPO 15 BIN STAND.

Weldment Cut List Tables

The default location for weldment profiles is install_dir\data\weldment profiles. SOLIDWORKS, STEP / IGES, .

File Location for Custom Profiles

Learn more at https://mlc-cad. Weld beads are also covered. Went to the design library and downloaded the Ansi Inch library, but don’t see any round tubing at all (except for aluminum) and the rectangular and square tubing profiles are also missing all of the smaller sizes? answers: 8. Hình 1 bao gồm một danh sách ngắn các kiểu và kích cỡ profile ansi inch và iso. In Save in, browse to install_dir\lang\language\weldment profiles and select or create appropriate and subfolders.

Zuschnittslistentabellen für Schweißkonstruktionen

by Badulescu Stefan.From the top, right-click on a tab > Toolbars > Task pane. Pattern and Mirror Support.

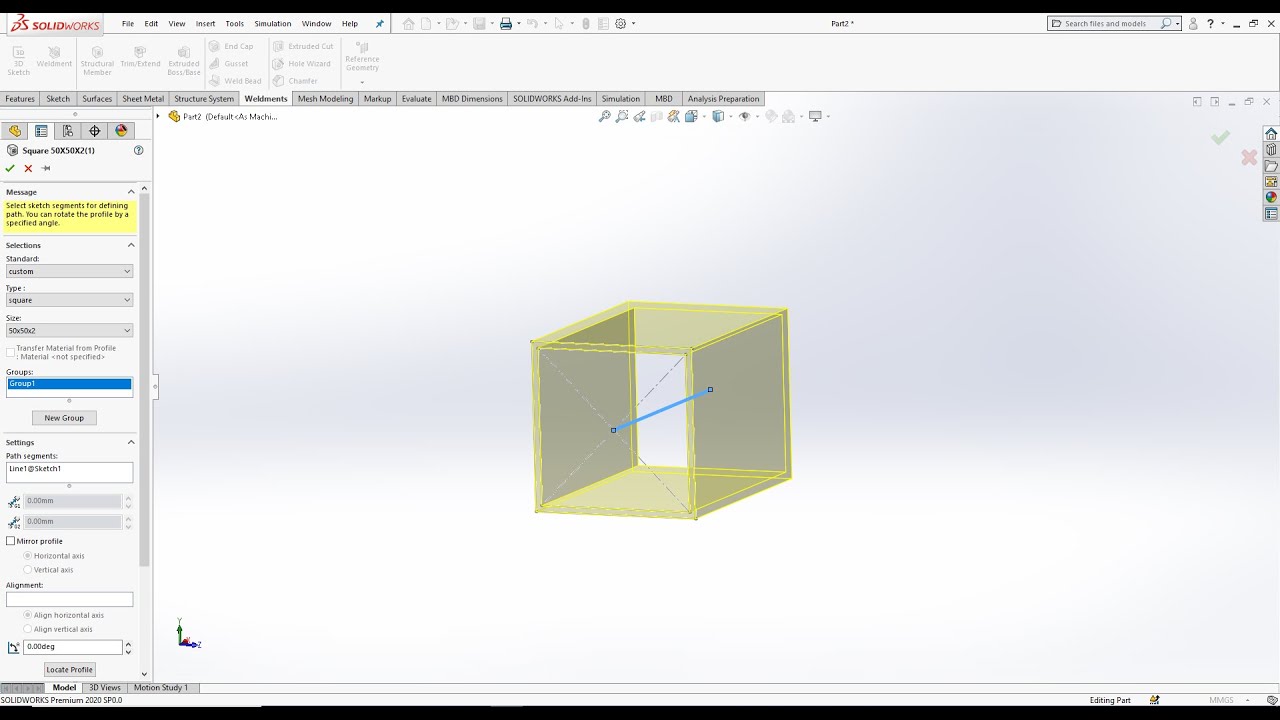

create custom weldment profile in solidworks 2020 - YouTube

SOLIDWORKS INDONESIA

SOLIDWORKS, March 26th, 2024 Harbor freight weld cart . The sub-folder structure within the weldment profiles folder determines the selections that appear in the Structural Member PropertyManager. To find this, go into your System Options, then File Location, use the drop-down to go to Weldment Profiles, and you should see the location listed in .SOLIDWORKS × Tag: welding ×. Click Structural Member (Weldments toolbar) or Insert > Weldments > Structural Member . The Selections box from the PropertyManager and the corresponding . im Supportbereich von SolidWorks in der Model-Library Bereich Special Interests.

AluFrame Assistant for SOLIDWORKS

How To Create Custom SOLIDWORKS Weldment Profiles

The icon indicates that the cut list is up-to-date. The icon indicates that the cut list needs to be updated. Kritik und Anregungen bitte an Stefan Berlitz. To download a library, hold down Ctrl and click on the library you need. Select the top level folder where you’re saving the profiles. Wenn das erste Schweißkonstruktions-Feature in ein Teil eingefügt wird, wird der Ordner . In the example below, weldment profiles is the home folder, and . It should be in: C:\Program Files\SOLIDWORKS Corp\SOLIDWORKS\lang\english\weldment profiles. And now I am ready to get to work on designing my new deck. Feel free to add this single SLDLFP to a Lumber directory within your . Once downloaded, extract the content into the Weldment Profile . von Andreas Fien.Hier sehen Sie die Modelle, die mir zur Verfügung gestellt wurden.

Solidworks Weldment Library

Weldments

How to add a custom profile in Solidworks weldmentscreating a custom profile in Solidworks weldmentsIn This Solidworks Weldments Tutorial, we are going to le.

SOLIDWORKS WELDMENT Tutorial #9 // CUSTOM PROFILES

Now down below it will show you the location of the folder.

SOLIDWORKS, welding

Learn how to take weldment profile and add custom properties for additional purchasing/company information in SOLIDWORKS. SOLIDWORKS is now looking in this folder for custom weldment profiles.But the above image shows a challenge that SOLIDWORKS Weldment users have long struggled with: How do you miter a joint that occurs at the intersection of 2 different sized profiles? In previous versions of SOLIDWORKS, the user would have to manually “match” these 2 structural members at the mitered corner. Structural members use profiles, for example, an angle iron. In the dialog box: In Save in, browse to install_dir\lang\language\weldment profiles and select or create appropriate and subfolders. Noch mehr Links zu anderen Stellen mit Modellen finden Sie auf meiner Linkseite. Type a name for Filename. A weld symbol representing the parameters you specify is created automatically when you: Create a weld bead component in an assembly. To create a tube drawing, click Tube Drawing (Tubing toolbar).
