The basic idea is to describe state changes in a system with transitions.Petri nets are a basic model of parallel and distributed systems (named after Carl Adam Petri). The author then proceeds with introductory modeling examples, behavioral and structural properties, three methods of analysis, subclasses of Petri nets and their analysis. Coloured Petri Nets (CP-nets or CPN) is a graphical ori- ented language ford sign, specification, simulation nd verification of systems. auf allen Plätzen im Vorbereich Marken liegen – alle Nachbedingungen unerfüllt sind, d. The tutorials originate from A Course On Workshop Management (see interactive examples ). Petri in 1960s. Mit Petri-Netzen werden heutzutage Systeme modelliert, deren Verhalten aus diskreten, lokal begrenzten Schritten besteht.Since a free signed net labels transitions uniquely, we must have at least three transitions a;b;cin N.bound for the number of tokens on this place in all reachable markings of the Petri net: •A Petri net is k-bounded if all its places are k-bounded. In general Petri nets, places are unbounded counters. For example, we can interpret P1 as “Printer Available”, In recent time, computer scientists are taking a broader interest in net theory. System design and model-driven development using nets. advantages in expressivity and modelling convenience questions of reachability, coverability, etc.Download book PDF.Petri Net, a widely studied mathematical formalism, is a graphical notation for modeling systems.Main – Chair of Theoretical Computer Science of Computer Science, Data Structures and Software Dependability in Cottbus, Germany. Highly Influenced. The DES is a class of systems that are guided by the occurrence of events asynchronous in time, which are becoming more and more relevant nowadays. The Petri net community has long sought the means to exchange Petri net models unambiguously, based on an agreed-on interchange format.This book provides essential information on Petri net theory and Petri net-based model checking methods. We give an example of a Petri net in Fig. Petri-Netze als .

Modeling Hybrid Systems with Petri Nets

This net has the same structure as a mechanical oscillator (where momentum is caused by the displacement of a mass owing to a retracting force). Many flavors of Petri nets are in use, e.

(PDF) Network Models from Petri Nets with Catalysts

: Analyse von Petri-Netz-Modellen, Teubner, Stuttgart, 1990 Literatur Petri-Netze II (SS 2004) – 2 – Prof. In coloured Petri nets, sets of places, transitions and arcs are pairwise disjoint P ∩ T = P ∩ A = T ∩ A = ∅.Figure 1: A basic Petri Net with two places and one transition.Stochastische Petrinetze.

(PDF) Petri Nets

Transition sequences aband baare both enabled from M 0 because abcand baare in the language.A Petri net is a mathematical representation of a network. Places may have finite or infinite capacity.Petri nets – Lehrstuhl für Theoretische Informatik. Firstly, they provide a rich family of both logic and timed models, that share a set of formal tools.2019 Exercise1.Therefore, Petri nets can be used to model concurrent distributed systems. Für beschränkte S/T-Netze wächst die Zahl erreichbarer Markierungen exponentiell in der Größe des Netzes

Introductions to Petri Nets

This book first introduces the basic models including time and stochastic extensions, in particular place-transition and high level Petri nets. The interpretation of these net elements depends on the system being modeled.Net theory is a theory of systems organization which had its origins, about 20 years ago, in the dissertation of C. in Betriebssystemen oder Echtzeitsystemen, aber auch Organisationsabläufen wie in Büros .Coloured Petri Nets, Springer, Berlin, 1994 Oberweis, A. alle Plätze im Nachbereich leer sind Wenn eine Transition schaltet, werden in einem Schritt – Alle . Further studies have been . In particular, one section is devoted to marked graphs, the concurrent system model most . A net is a tuple N = ( P, T, A, Σ, C, N, E, G, I ) where: P is a set of places. p 1 p 2 p 3 t 1 t 2 t 3 ExerciseR. The Petri nets are one of the most widely used methods for the study of the dynamics that falls within the category of Discrete Event Systems (DES) [ 1 ]. Since this seminal paper, nets have been applied in various areas, at the same time being modified and theoretically investigated. The monotonicity lemma for regular Petri nets still holds for signed Petri nets, as labelling the transitions does not modify the proof of this lemma . Finally, the paper was accepted and, in the next paper, the authors have proved that their model was a limit case of discrete Petri nets [DaAl 90]. The tool has been developed and is maintained at the Brandenburg Technical University (BTU), Dep. Record all intermediate sets of markings with their nite representation of minimal elements. Petri nets combine a simple, clear graphical notation with a precise semantics, and a wealth of available techniques for analysis and verification.4 Beschränktheit (N,m 0) heißt beschränkt, wenn eine Schranke b existiert, so dass m(s) b für alle m [m 0>.) Stochastic net models. As for the Petri net theory, it involves the interleaving semantics and concurrency semantics of elementary net systems, some important net structures (e.Petri-Netze sind ein graphisches Mittel zur Beschreibung, Modellierung, Analyse und Si- mulation von dynamischen Systemen, die eine feste Grundstruktur besitzen. are computationally harder to answer, but still decidable Exchange of . Sie eignen sich zur Modellierung, Analyse und Simulation von dynamischen Systemen mit nebenläufigen und nichtdeterministischen Vorgängen, z. Petri nets are one of the most important discrete event systems formalisms.

Petri Nets (for Planners)

Charlie is an extensible software tool to analyse (extended) place/transition nets, it belongs to our toolset comprising Snoopy, Marcie, Patty and S4 .

Stochastische Petrinetze (SPN) gehen aus den Standard-Petri-netzen hervor, wobei jeder Transition eine exponentiell verteilte Schaltrate zugewiesen wird. Beispiele hierfür sind Rechenanlagen, Büroabläufe oder Herstellungsverfahren. Petri nets are a formal model for concurrent systems invented in the 1960s by Carl Adam Petri. (b)Determine whether fq .Petri Nets (PNs) is formalism for modelling discrete event systems.

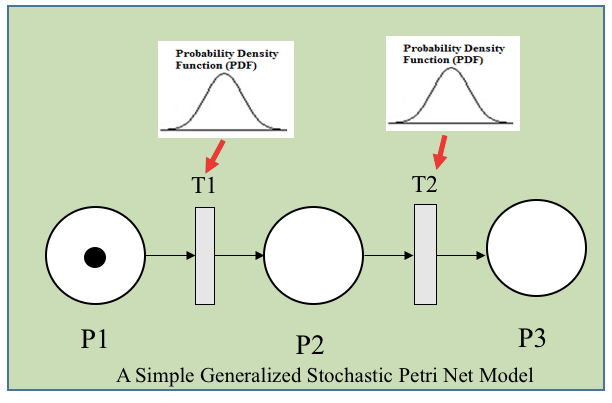

An Introduction to Generalized Stochastic Petri Net (GSPN) | by Swati ...

In the last few years, the sematics of Petri nets has been investigated in several different ways, including via non-sequential processes, via unfolding constructions, and via algebraic models, which view Petrinets as essentially algebraic theories whose models are monoidal categories. Einen Überblick über zahlreiche Anwendungsbereiche von Petri-Netzen gibt. Petri auf Basis der Graphentheorie entwickelt.Petri-Netze sind relevant und dienen oft als Maßstab für die Qualität und Ausdruckskraft von Modellen verteilter Systeme. The bu er can contain at most ve items at a time, and machines A . Performed by R. Discrete, Continuous, and Hybrid Petri Nets Download book PDF.20]) Consider a simple production system in which raw parts are rst processed by a machine A, stored into a bu er, and then processed by a machine B. (a)Describe the set of initial markings from which M= f2 p 2gis coverable in N.Topics specific to Petri Nets: Analysis and synthesis, structure and behaviour of nets. A problem with Petri nets is the explosion of the number of elements of their graphical form when they are used to describe complex systems. General net theory.PDF | On Jun 21, 2019, Jiacun Wang and others published Petri Nets | Find, read and cite all the research you need on ResearchGate: Petri Nets, Springer, Berlin, 1985 Starke, P. The algebraic aspect of distributed systems was described by Petri in 1962 in his doctoral thesis Communication with Automata (Petri, 1966), in which it was argued .The Petri Net Toolbox is a software tool for the simulation, analysis, and design of discrete-event systems based on Petri Net models.Petri nets have been used to describe a wide range of systems since their invention in 1962.PDF | Petri Nets: Properties, Analysis and Applications | Find, read and cite all the research you need on ResearchGate

Petri Nets Tools and Software

Typical examples of application areas are communication prot distributed cols . Ein stochastisches Petrinetz ist ein Petrinetz.This site provides you with information about the PNML standard, to foster its quick and large adoption.Petri nets were not Petri nets because they were not discrete and hence not relevant to the conference; others thought that it was a really innovative approach for Petri nets.manual] M Herajy, F Liu, C Rohr and M Heiner: (Coloured Hybrid Petri Nets in Snoopy – User Manual; Technical report 01-17, Brandenburg University of Technology Cottbus, Department of .

Transitions are connected to places through the arcs, and can turn resources into other resources: A transition can fire, consuming tokens living in places connected to its input, and producing tokens living in . Petri-Netze wurden 1962 von C. The RELAX-NG specification of PNML and links to supporting tools can be found on this site. Any place contains a given number of tokens, which represent resources. Activity charts (UML) Data flow graphs, signal flow graphs and marked graphs GRAFCET (programming language for programming logic controllers) Specialized languages for workflow management and business processes Invented by .

High-level Petri Nets

The nodes labeled P 1 and P 2 are called places and the node labeled A is called a transition.Petri-Netze / Eine Einführung 17 Dynamik in Petri-Netzen (2) Transition heisst aktiviert (kann schalten), wenn – alle Vorbedingungen erfüllt sind, d.Time and Petri Nets Louchka Popova-Zeugmann Springer 2013. The timed nets can be deterministic or stochastic. Three are the main reasons of this. Net-based semantical, logical and algebraic calculi. High-level Petri Nets were developed to overcome this problem by introducing higher-level concepts, such as . Secondly, they can be used in all phases of design of a control system. Figure 2: Petri Net before and after the ﬁring of transition T1.Ptolemy Project Home Page

Petri nets

Places symbolisestates,conditions, orresourcesthat need to .

Petri-Netze / Eine Einführung

This set contains all possible colors, operations and functions used within the .Petri-Netze Petri-Netze NicoBühler Albert-Ludwigs-Universität Freiburg 14.1 (adapted from [1, ex. Σ is a set of color sets. However, Petri Nets do not scale well when it comes to modeling and simulating large . Their modeling and design capabilities are illustrated by a set of representations of interest in operating and communication systems. The tutorials are created by Wil van der Aalst , Vincent Almering, and Hermen Wijbenga from TU Eindhoven, the Netherlands. Petri Nets provide the foundation for modeling concurrency, communication, synchronization, and resource sharing constraints that are inherent to many systems. •A Petri net is structurally bounded if it is bounded in any initial marking.: Modellierung und Ausführung von Workflows mit Petri Netzen, Teubner, Stuttgart, 1996 Reisig, W.Petri nets | Exercise sheet 1 Due 30. The parts are moved around using a single robot arm R. (N,m 0) heißt 1-beschränkt, wenn b=1. 4 5 2 2 p 1 p 2 t 1 t 2 q 1 q 2 3 s 1 s 2 s 3 Use the backward algorithm to answer the following questions. A Petri net is composed of places, transitions and arcs.

Petri-Netze einfach erklärt

dk N m m m p k 00: : ( ) 1-bounded Petri nets are call safe network Extract from Tutorial Snoopy, 2011, M. It is in particular well-suited for systems in which ommu-nication, synchronisation and resource sharing are important. An Evaluation of High-End Tools for Petri-Nets (June 1998)

PowerPoint

Discrete Event Systems Petri Nets

Higher-level net models (coloured nets, timed nets, etc.Starts with a brief review of the history and the application areas considered in the literature., invariant, repetitive vector, siphon, and trap), some classical net . Understanding Petri Nets: Modeling Techniques, Analysis Methods, Case Studies Wolfgang Reisig Springer 2013. Thus Petri nets constitute a modeling paradigm, understandable in a broad sense as the total pattern of perceiving, conceptualising, acting, validating and valuing associated with a particular image of reality that prevails in a .2 (From SS 2018, .

Platform Independent Petri net Editor 2

A brief introduction to coloured Petri Nets

The following interactive tutorials introduce Petri nets, state spaces, and place/transition invariants. ISBN: 978-3-642-41114-4 More information: Springer.1 (From SS 2016, Exercise sheet 2) Apply the backwards reachability algorithm to the Petri net below to decide if the marking M= (0;0;2) can be covered. A Petri net (PN) is a bipartite graph consisting of two types of nodes, namely places (represented by a circle) and transitions (represented by a rectangle). Petri Nets (IN2052) Lecturer (assistant) Francisco Javier Esparza Estaun [L] Chana Weil-Kennedy. Jutta Mülle Analyse von Petrinetzen – Folie 15 4. Developed by (and named after) C. ISBN: 978-3-642-33277-7 More information: PDF (ca 90 KB) Modeling Business Processes: A Petri Net Oriented Approach This is helpful for defining a common interchange format for Petri Nets models (part of the standardisation effort ). Petri-Netze Petri Netze allgemein PetriNetze I .Let Nand N0be respectively the left and right Petri nets below. Sommersemester 2021. Petri-Netze Inhaltsverzeichnis PetriNetzeallgemein EinführendesBeispiel:VierJahreszeiten WechselseitigerAusschluss KapazitätundGewichtungvonPN BerechnungderFolgezustände Petri-NetzealsSprachakzeptoren.Petri nets | Revision Exercise Sheet ExerciseR.User’s manual for coloured fuzzy Petri nets in Snoopy (pdf) (July 15, 2020) Mini manual for fuzzy Petri nets in Snoopy (txt) (April 24, 2019) [HLRH17. Finally, Petri nets have been successfully used in . T is a set of transitions. Petri Net consisting of two places (P1 and P2) and one transition (T1).

Petri nets

Overview Authors: René David 0, . Petri-Netze sind auf der einen Seite anschaulich und können daher auch von Nicht-Fachleuten verwendet . Relationships between Petri nets and other approaches. The structure of Petri nets intuitively visualizes fundamental concepts of concurrency such as .The purpose of this survey is to collect characteristics of currently used Petri Nets. ˆˇ ˙˘ ˆˇ ˙˘ ˆˇ ˙˘ ˆˇ ˙˘ t @ R @ @ R @ s1 s2 s3 s4 Petri nets contain places ˆˇ ˙˘ and transitions that may be connected by directed arcs. Five types of Petri Net models are accepted: untimed, transition-timed, place-timed, stochastic, and generalized stochastic nets.
